Schneider Electric 9001BW92Y Harmony Pendant Station, Mechanical Interlock, 5A, 600V AC, Yellow
- MPN: 9001BW92Y
- UPC: 785901663683
- PPN: SCH-9001BW92Y
CAD
$162.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for efficiency in automation and control applications, this pendant station from Schneider Electric features a mechanical interlock that enhances operational safety and reliability. With a robust capacity of 5A and rated for use at 600V AC, it is well-suited for diverse industrial environments. The vibrant yellow color not only adds a distinctive touch but also ensures visibility in busy workspaces. Ideal for operators needing reliable control, it seamlessly integrates into existing systems while supporting essential functionalities in various installations.
Features

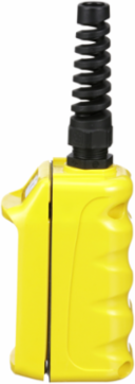

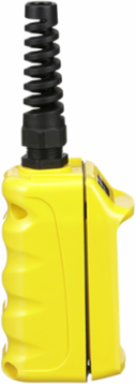

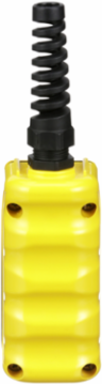

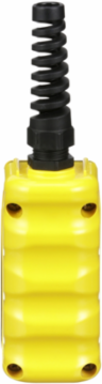

- Housed in a rugged, yellow thermoplastic enclosure, the 9001BW92Y is specifically designed to resist impacts, corrosion, and moisture in demanding environments. This high-visibility housing ensures the control station is easily locatable for operators while protecting internal components from the physical abuse typical of machine shops and assembly lines.

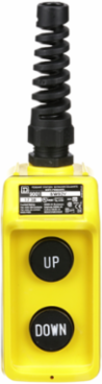

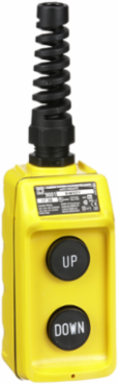

- This pendant-style station is specifically designed for momentary motor control, featuring clear "UP" and "DOWN" legends for intuitive operation. It provides an immediate tactile solution for managing vertical loads, ensuring operators can make precise adjustments to overhead cranes, hoists, or motorized doors without looking away from the load.
- The internal switches are spring-loaded to return to the "off" position as soon as the operator releases the button. This prevents equipment from continuing to move unattended, providing a critical safety layer that protects personnel and prevents structural damage to your facility's lifting equipment.
- The bright "Safety Yellow" finish serves as a visual beacon in cluttered or dark workspaces, reducing the time spent searching for controls. This high-contrast color scheme is a standard safety preference for industrial engineers, ensuring that the control station is always within sight during critical maneuvers.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UL, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | kg CO2 eq., 0 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | kg CO2 eq., 0 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Code Designation | P600 DC-13, Ue = 600 V, Ie = 5 AB600 AC-13, Ue = 600 V, Ie = 5 A |
| Control Station Composition | 2 push-buttons, 2 colours choice, 1 latching 1 NO + 1 NO, white UP-DOWN |
| Enclosure Material | Flame-retardant PC Yellow |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony 9001BW |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 49 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Cable Entry | 0.5 inch NPT conduit entrance |
| Contacts Type And Composition | 2 NO |
| Device Short Name | 9001BW |
| Enclosure Type | 1 body |
| Product Or Component Type | pendant control station |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Connections - Terminals | screw clamp terminals |
| Take-back | No |
| Customs Code | 8536509033 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0 |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 3R/4X |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | pendant control station |
|---|
| Range Of Product | Harmony 9001BW |
|---|
ETIM
| ETIM 8 | EC000234 |
|---|
| ETIM 9 | EC000234 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
