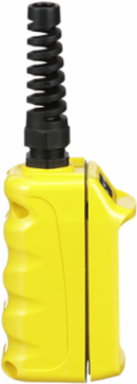

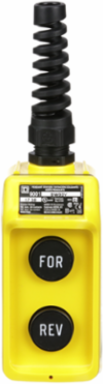

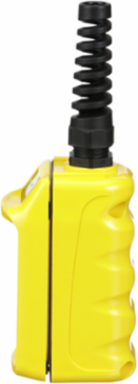

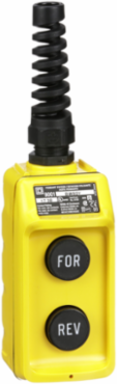

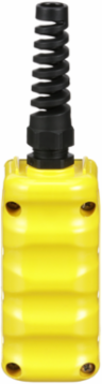

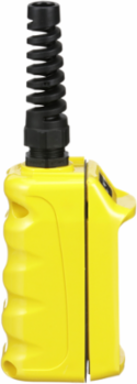

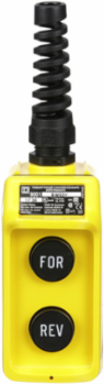

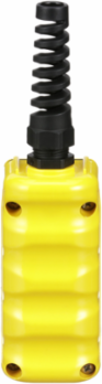

Schneider Electric 9001BW93Y Harmony Pendant Station, Mechanical Interlock, 5A, 600V AC
- MPN: 9001BW93Y
- UPC: 785901852902
- PPN: SCH-9001BW93Y
CAD
$162.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony Pendant Station by Schneider Electric stands out for its robust design and reliable operation in a variety of industrial environments. Featuring a mechanical interlock, this pendant station ensures safety and prevents unintended operation, making it an essential component for controlling machinery effectively. With a current rating of 5A and a voltage capacity of 600V AC, it offers consistent performance for demanding applications. Built for durability, this station is designed to facilitate seamless operations while prioritizing user safety and efficiency.
Features
- This station comes factory-labeled with high-visibility "Forward" and "Reverse" markings, specifically designed for motor control applications. By providing clear, intuitive visual cues for operators, it minimizes human error and increases throughput in conveyor, hoist, and winch applications where rapid directional changes are required.
- Equipped with high-quality momentary push buttons, the unit returns to the "off" position as soon as pressure is released. This provides the precision control required for "inching" or "jogging" heavy machinery, ensuring that motors only run while the operator is actively engaged, which is a critical safety requirement for most industrial motor starters.
- Featuring a compact, surface-mount design with pre-drilled conduit entries, this pendant-style or wall-mount station integrates seamlessly into your current 600V control circuit. The streamlined footprint allows for easy mounting directly onto machine frames or control panels, reducing labor time for electricians during retrofits or new equipment installations.
- Rated for heavy-duty industrial use, the internal contact blocks are engineered to endure thousands of mechanical cycles without failure. This high-reliability build reduces equipment downtime and maintenance overhead, ensuring your motor reversing circuits remain operational even in high-traffic, 24/7 manufacturing environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UL, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.7 kg CO2 eq., 0.6975453509531829 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 1.7327907045608053 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Code Designation | P600 DC-13, Ue = 600 V, Ie = 5 AB600 AC-13, Ue = 600 V, Ie = 5 A |
| Control Station Composition | 2 push-buttons 1 NO + 1 NO, white FORWARD-REVERSE |
| Enclosure Material | Flame-retardant PC Yellow |
| Product Or Component Type | pendant control station |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Connections - Terminals | screw clamp terminals |
| Package Weight(Lbs) | 317.515 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1717551221455112, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0023432290219667176, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Cable Entry | 0.5 inch NPT conduit entrance |
| Contacts Type And Composition | 2 NO |
| Device Short Name | 9001BW |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony 9001BW |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 49 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 2.604434406681466 |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 3R/4X |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | pendant control station |
|---|
| Range Of Product | Harmony 9001BW |
|---|
ETIM
| ETIM 8 | EC000234 |
|---|
| ETIM 9 | EC000234 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
