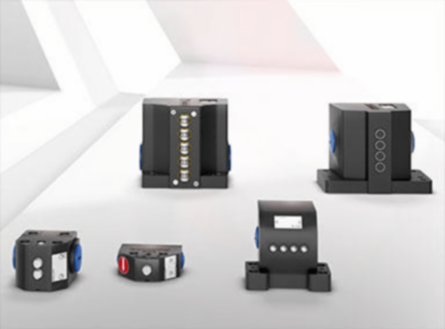

Balluff BNS 813-B05-R10-46-60-01 Mechanical multiple position limit switches with positive opening BNS 813-B05-R10-46-60-01
- MPN: BNS 813-B05-R10-46-60-01
- PPN: BAL-BNS056J
CAD
$1281.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Positive opening is primarily used in the smaller models, whose configuration does not permit safety switching elements. The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening (NC contact). The number of positively opened switching points can be combined freely and with standard switching elements.
Documentation & Downloads
Specifications
Key Specifications
| Housing material | Aluminum |
|---|---|
| Version | with forced opening |
| Continuous current | 1-5. Switch position: 5 A |
| Installation | Vertical |
| Approach speed | 1-5. Switch position: 60 m/min |
| Ambient temperature | -5-85 °C |
| Approval/Conformity | CE, WEEE |
| Number of switching positions | 5x Roller |
|---|---|
| Operating principle | 1-5. Switch position: Mechanical |
| Rated operating voltage Ue | 1-5. Switch position: 250 VAC |
| Approach direction | longitudinal, parallel to attachment surface |
| Connection type | 1-5. Switch position: Solder connection |
| IP rating | IP67 |
