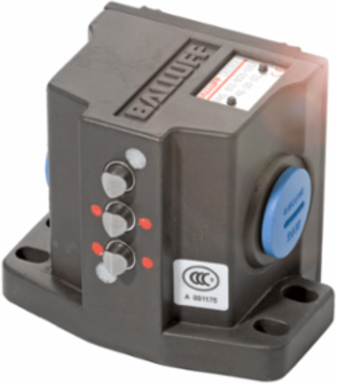

Balluff BNS 813-B02-D10-46-60-01 Mechanical multiple position limit switches with positive opening BNS 813-B02-D10-46-60-01
Balluff BNS 813-B02-D10-46-60-01 Mechanical multiple position limit switches with positive opening BNS 813-B02-D10-46-60-01
- MPN: BNS 813-B02-D10-46-60-01
- PPN: BAL-BNS0572
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$543.75/ EA
Description
Positive opening is primarily used in the smaller models, whose configuration does not permit safety switching elements. The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening (NC contact). The number of positively opened switching points can be combined freely and with standard switching elements.
Specifications
Specifications
- Housing material
- Aluminum
- Version
- with forced opening
- Continuous current
- 1-2. Switch position: 5 A
- Installation
- Vertical
- Approach speed
- 1-2. Switch position: 20 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Number of switching positions2x Chisel
Operating principle1-2. Switch position: Mechanical
Rated operating voltage Ue1-2. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Connection type1-2. Switch position: Solder connection
IP ratingIP67
