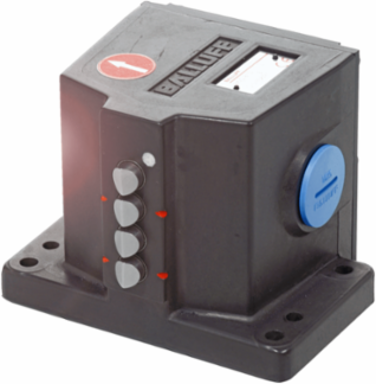

Balluff BNS 813-D04-R12-100-20-01-FE Mechanical multiple position limit switches with safety switch positions BNS 813-D04-R12-100-20-01-FE
- MPN: BNS 813-D04-R12-100-20-01-FE
- PPN: BAL-BNS010K
CAD
$1399.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For safety functions such as Emergency Stop or end-of-travel limitation with safety switches in accordance with DIN EN 60204-1/VDE 0113The switching process is triggered by a rigid ram that actuates a mechanical switching element with positive opening. The switching is protected even with welded contacts.The number of safety switching points can be combined freely and with standard switching elements.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- Safety EN 60204-1
- Continuous current
- 1-4. Switch position: 6 A
- Installation
- Vertical
- Approach speed
- 1-4. Switch position: 60 m/min
- Connection type
- 1-4. Switch position: Screw terminal
- IP rating
- IP67
Number of switching positions4x Roller
Operating principle1-4. Switch position: Mechanical
Rated operating voltage Ue1-4. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5-85 °C
Approval/ConformityCE, WEEE
