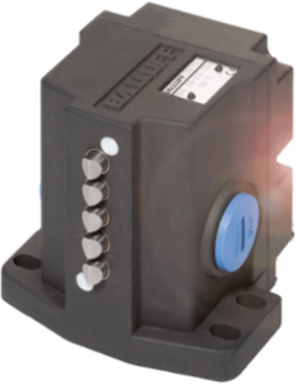

Balluff BNS 819-B02-D08-46-13 Mechanical multiple position switches BNS 819-B02-D08-46-13
- MPN: BNS 819-B02-D08-46-13
- PPN: BAL-BNS01P6
CAD
$420.16
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 72 x 49 x 47 mm |
|---|---|
| Number of switching positions | 2x Chisel |
| Operating principle | 1-2. Switch position: Mechanical |
| Rated operating voltage Ue | 1-2. Switch position: 250 VAC |
| Approach direction | longitudinal, parallel to attachment surface |
| Switch position spacing | 8 mm |
| Ambient temperature | -5-85 °C |
| Approval/Conformity | CE, CCC, WEEE |
| Housing material | Aluminum |
|---|---|
| Version | Snap contact |
| Continuous current | 1-2. Switch position: 0.1 A |
| Installation | Vertical |
| Approach speed | 1-2. Switch position: 20 m/min |
| Connection type | 1-2. Switch position: Screw terminal |
| IP rating | IP67 |
