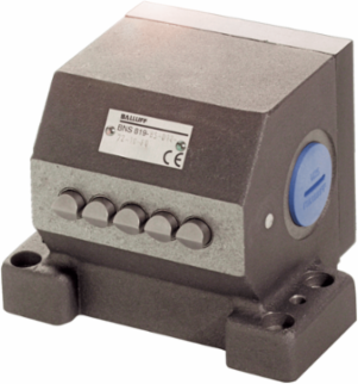

Balluff BNS 819-B03-D12-72-10 Mechanical multiple position switches BNS 819-B03-D12-72-10
- MPN: BNS 819-B03-D12-72-10
- PPN: BAL-BNS024H
CAD
$1052.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- Snap contact
- Continuous current
- 1-3. Switch position: 6 A
- Installation
- Vertical
- Approach speed
- 1-3. Switch position: 40 m/min
- Connection type
- 1-3. Switch position: Screw terminal
- IP rating
- IP67
Number of switching positions3x Chisel
Operating principle1-3. Switch position: Mechanical
Rated operating voltage Ue1-3. Switch position: 250 VAC
Approach directionVertical to mounting surface
Switch position spacing12 mm
Ambient temperature-5-85 °C
Approval/ConformityCE, CSA, WEEE
