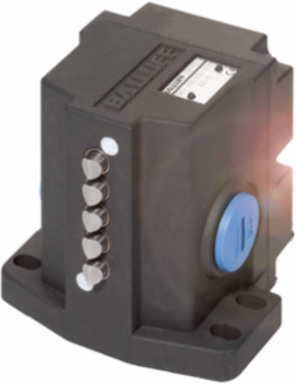

Balluff BNS 819-B04-D08-46-11 Mechanical multiple position switches BNS 819-B04-D08-46-11
- MPN: BNS 819-B04-D08-46-11
- PPN: BAL-BNS01UT
CAD
$782.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- Snap contact
- Continuous current
- 1-4. Switch position: 5 A
- Installation
- Vertical
- Approach speed
- 1-4. Switch position: 20 m/min
- Connection type
- 1-4. Switch position: Screw terminal
- IP rating
- IP67
Number of switching positions4x Chisel
Operating principle1-4. Switch position: Mechanical
Rated operating voltage Ue1-4. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing8 mm
Ambient temperature-5-85 °C
Approval/ConformityCE, CCC, WEEE
