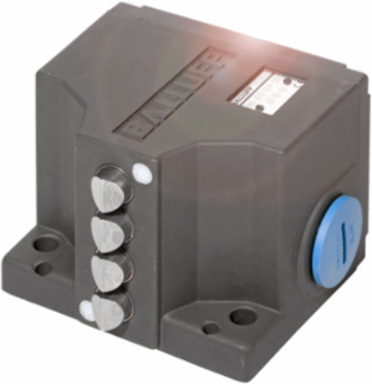

Balluff BNS 819-B04-D12-61-12-10-FD Mechanical multiple position switches BNS 819-B04-D12-61-12-10-FD
Balluff BNS 819-B04-D12-61-12-10-FD Mechanical multiple position switches BNS 819-B04-D12-61-12-10-FD
- MPN: BNS 819-B04-D12-61-12-10-FD
- PPN: BAL-BNS029N
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1207.31/ EA
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Specifications
Specifications
- Dimension
- 79 x 60 x 85.5 mm
- Number of switching positions
- 4x Chisel
- Operating principle
- 1-4. Switch position: Mechanical
- Rated operating voltage Ue
- 1-4. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 12 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, CCC, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-4. Switch position: 6 A
InstallationVertical
Approach speed1-4. Switch position: 40 m/min
Connection type1-4. Switch position: Screw terminal
IP ratingIP67
