Balluff

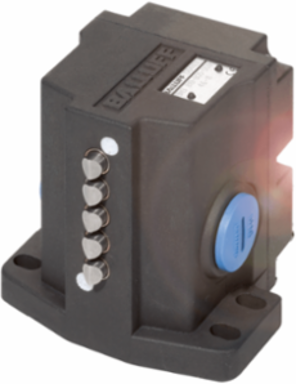

Balluff BNS 819-B05-D10-46-11 Mechanical multiple position switches BNS 819-B05-D10-46-11

Mechanical multiple position switches BNS 819-B05-D10-46-11
  • MPN: BNS 819-B05-D10-46-11
  • PPN: BAL-BNS01YR

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1070.28/ EA

Description

Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

Specifications

Specifications

Housing material
Aluminum
Version
Snap contact
Continuous current
1-5. Switch position: 5 A
Installation
Vertical
Approach speed
1-5. Switch position: 20 m/min
Ambient temperature
-5-85 °C
Approval/Conformity
CE, WEEE
Number of switching positions5x Chisel
Operating principle1-5. Switch position: Mechanical
Rated operating voltage Ue1-5. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Connection type1-5. Switch position: Screw terminal
IP ratingIP67
