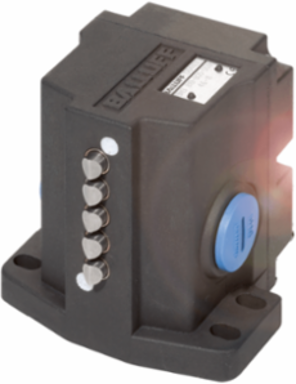

Balluff BNS 819-B08-R08-46-11 Mechanical multiple position switches BNS 819-B08-R08-46-11
- MPN: BNS 819-B08-R08-46-11
- PPN: BAL-BNS0213
CAD
$1669.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 72 x 96 x 48 mm
- Number of switching positions
- 8x Roller
- Operating principle
- 1-8. Switch position: Mechanical
- Rated operating voltage Ue
- 1-8. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 8 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-8. Switch position: 5 A
InstallationVertical
Approach speed1-8. Switch position: 60 m/min
Connection type1-8. Switch position: Screw terminal
IP ratingIP67
