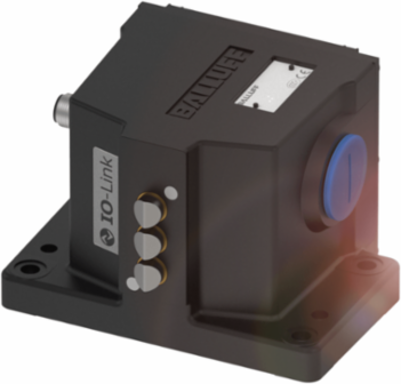

Balluff BNS 819-D03-D12-100-10-FD-S4L-I Mechanical multiple position switches BNS 819-D03-D12-100-10-FD-S4L-I
- MPN: BNS 819-D03-D12-100-10-FD-S4L-I
- PPN: BAL-BNS04H2
CAD
$1472.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Housing material
- Aluminum
- Version
- Snap contact
- Installation
- Vertical
- Approach speed
- 1-3. Switch position: 40 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, IO-Link, WEEE
Number of switching positions3x Chisel
Operating principle1-3. Switch position: Mechanical
Approach directionlongitudinal, parallel to attachment surface
Connection type1. Switch position: Connector
IP ratingIP67
