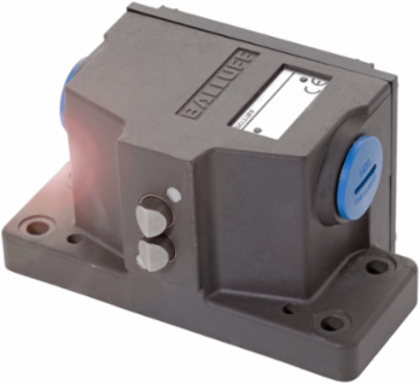

Balluff BNS 819-D04-D12-62-10-FD-S80S Mechanical multiple position switches BNS 819-D04-D12-62-10-FD-S80S
- MPN: BNS 819-D04-D12-62-10-FD-S80S
- PPN: BAL-BNS01JT
CAD
$1763.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 120 x 84 x 85.5 mm
- Number of switching positions
- 4x Chisel
- Operating principle
- 1-4. Switch position: Mechanical
- Rated operating voltage Ue
- 1-3. Switch position: 6…60 V, 4. Switch position: 30 VAC/36 VDC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 12 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-4. Switch position: 4 A
InstallationVertical
Approach speed1-4. Switch position: 40 m/min
Connection type1. Switch position: Connector
IP ratingIP67
