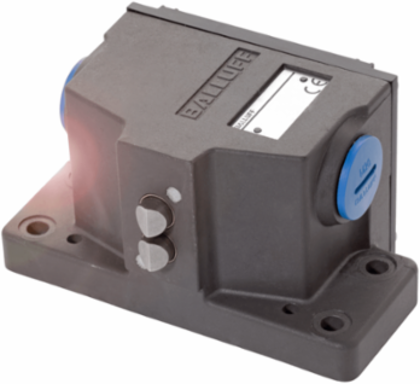

Balluff BNS 819-D04-L12-62-10 Mechanical multiple position switches BNS 819-D04-L12-62-10
- MPN: BNS 819-D04-L12-62-10
- PPN: BAL-BNS01K9
CAD
$1102.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 120 x 84 x 62 mm
- Number of switching positions
- 4x Roller bearing
- Operating principle
- 1-4. Switch position: Mechanical
- Rated operating voltage Ue
- 1-4. Switch position: 250 VAC
- Approach direction
- longitudinal, parallel to attachment surface
- Switch position spacing
- 12 mm
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, CCC, WEEE
Housing materialAluminum
VersionSnap contact
Continuous current1-4. Switch position: 6 A
InstallationVertical
Approach speed1-4. Switch position: 120 m/min
Connection type1-4. Switch position: Screw terminal
IP ratingIP67
