Balluff

Balluff BNS 819-D04-L16-62-10 Mechanical multiple position switches BNS 819-D04-L16-62-10

Mechanical multiple position switches BNS 819-D04-L16-62-10
  • MPN: BNS 819-D04-L16-62-10
  • PPN: BAL-BNS01KC

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1102.59/ EA

Description

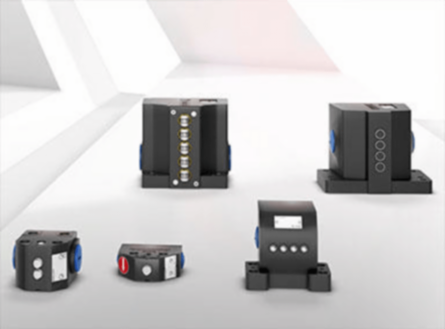

Mechanical row-position counters with up to 16 switching points are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

Specifications

Specifications

Housing material
Aluminum
Version
Snap contact
Continuous current
1-4. Switch position: 6 A
Installation
Vertical
Approach speed
1-4. Switch position: 120 m/min
Connection type
1-4. Switch position: Screw terminal
IP rating
IP67
Number of switching positions4x Roller bearing
Operating principle1-4. Switch position: Mechanical
Rated operating voltage Ue1-4. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing16 mm
Ambient temperature-5-85 °C
Approval/ConformityCE, WEEE
