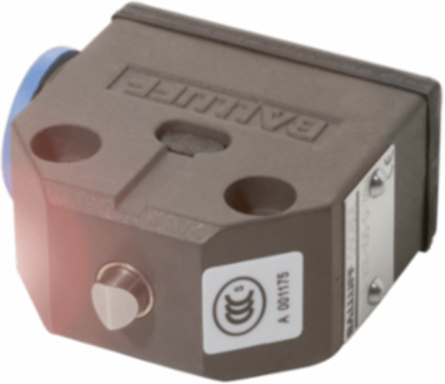

Balluff BNS 819-100-R-13-S4 Mechanical single position limit switches BNS 819-100-R-13-S4
Balluff BNS 819-100-R-13-S4 Mechanical single position limit switches BNS 819-100-R-13-S4
- MPN: BNS 819-100-R-13-S4
- PPN: BAL-BNS006P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$489.05/ EA
Description
Mechanical position switches are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Specifications
Specifications
- Housing material
- Aluminum
- Version
- Snap contact
- Continuous current
- 1. Switch position: 0.1 A
- Installation
- any
- Approach speed
- 1. Switch position: 60 m/min
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, WEEE
Number of switching positions1x Roller
Operating principle1. Switch position: Mechanical
Rated operating voltage Ue1. Switch position: 25 VAC/60 VDC
Approach directionlateral or at right angles to mounting surface
Connection type1. Switch position: Connector
IP ratingIP67
