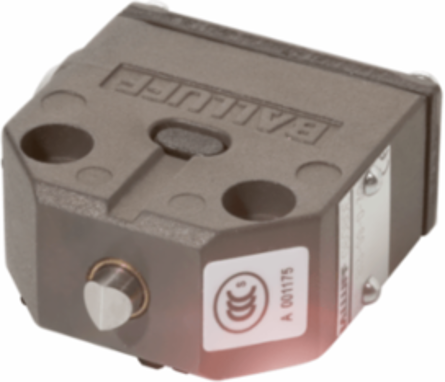

Balluff BNS 819-99-D-11-S80 Mechanical single position limit switches BNS 819-99-D-11-S80
- MPN: BNS 819-99-D-11-S80
- PPN: BAL-BNS0040
CAD
$560.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mechanical position switches are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 40 x 20 x 47 mm
- Number of switching positions
- 1x Chisel
- Operating principle
- 1. Switch position: Mechanical
- Rated operating voltage Ue
- 1. Switch position: 250 VAC
- Approach direction
- lateral or at right angles to mounting surface
- Connection type
- 1. Switch position: Connector
- IP rating
- IP67
Housing materialAluminum
VersionSnap contact
Continuous current1. Switch position: 4 A
Installationany
Approach speed1. Switch position: 20 m/min
Ambient temperature-5-85 °C
Approval/ConformityCE, WEEE
