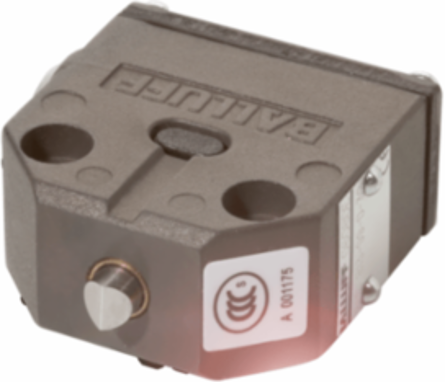

Balluff BNS 819-99-K-10 Mechanical single position limit switches BNS 819-99-K-10
Balluff BNS 819-99-K-10 Mechanical single position limit switches BNS 819-99-K-10
- MPN: BNS 819-99-K-10
- PPN: BAL-BNS004E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$166.20/ EA
Description
Mechanical position switches are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Specifications
Specifications
- Dimension
- 40 x 20 x 43 mm
- Number of switching positions
- 1x Ball
- Operating principle
- 1. Switch position: Mechanical
- Rated operating voltage Ue
- 1. Switch position: 250 VAC
- Approach direction
- any
- Connection type
- 1. Switch position: Solder connection
- IP rating
- IP67
Housing materialAluminum
VersionSnap contact
Continuous current1. Switch position: 5 A
Installationany
Approach speed1. Switch position: 9 m/min
Ambient temperature-5-85 °C
Approval/ConformityCE, CCC, WEEE
