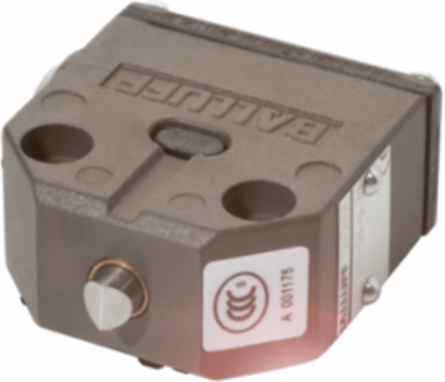

Balluff BNS 819-99-K-13 Mechanical Position Limit Switch, 1-Position, 250 VAC, IP67, Aluminum Housing
- MPN: BNS 819-99-K-13
- PPN: BAL-BNS004M
CAD
$195.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mechanical position switches are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.
Documentation & Downloads
Specifications
Additional
| Continuous Current | 0.1 A |
|---|---|
| Approach Speed | 9 m/min |
| Switching Function | Single-pin changeover |
| Reproducibility | 0.03 mm |
| Dimensions | 40 x 20 x 47 mm |
| Contact Material | Gold |
| IP Rating | IP67 |
| Installation | any |
| Operating Principle | Mechanical |
| Approval/Conformity | CE, CCC, WEEE |
| Rated Voltage | 250 VAC |
|---|---|
| Number of Switching Positions | 1 |
| Switch Actuation Force | 8 N |
| Mechanical Life Expectancy | 10 million switching operations |
| Housing Material | Aluminum, Anodized |
| Plunger Material | Stainless steel (1.4034) |
| Connection Type | Screw terminal |
| Approach Direction | any |
| Protection | Snap contact |
| Basic Standard | IEC 60947-5-1 |
