Balluff BNS 819-99-R-13 Mechanical single position limit switches BNS 819-99-R-13

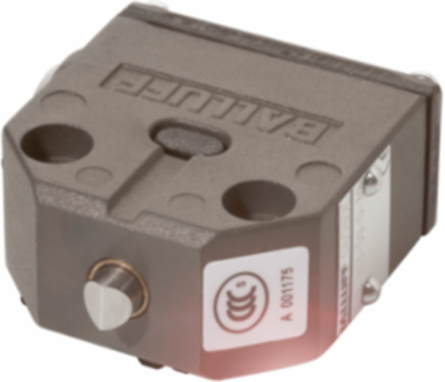

Mechanical single position limit switches BNS 819-99-R-13
  • MPN: BNS 819-99-R-13
  • PPN: BAL-BNS0051

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$276.49/ EA

Description

Mechanical position switches are the classics of automation. The switching process is carried out by a telescopic ram. This ram is used to connect a mechanical switching element in a separate sealed chamber.The optimal choice of ram shape for the application in combination with our cams guarantees a long service life.

Specifications

Specifications

Dimension
40 x 20 x 47 mm
Number of switching positions
1x Roller
Operating principle
1. Switch position: Mechanical
Rated operating voltage Ue
1. Switch position: 250 VAC
Approach direction
lateral or at right angles to mounting surface
Connection type
1. Switch position: Screw terminal
IP rating
IP67
Housing materialAluminum
VersionSnap contact
Continuous current1. Switch position: 0.1 A
Installationany
Approach speed1. Switch position: 60 m/min
Ambient temperature-5-85 °C
Approval/ConformityCE, CCC, WEEE
