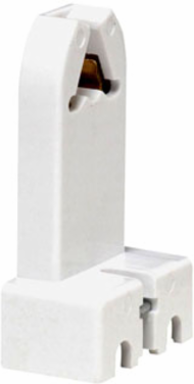

Leviton 390-1W Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Pedestal, Screw Mount, Turn-Type, , 2-Screw Terminal - White

MPN: 390-1W
UPC: 078477133002
PPN: LEV-390-1W

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$5.30/ EA

Qty:

Loading add to cart quantity...

Description

Medium Base, Bi-Pin, Standard Fluorescent Lampholder, Pedestal, Screw Mount, Turn-Type, , 2-Screw Terminal - White

Specifications

Standards and Certifications

CSA Certified: File LR-5863

UL ListedFile E5833

Product Features

Availability: Distribution

Color: White

Lamp Base: Medium

Lampholder Type: Linear

Nut: 6-32 Zinc-Plated

Standards and Certifications: UL/CSA

Warranty: 1 Year Limited

Body MaterialThermoset

Contact MaterialCopper-Alloy

Lamp ContactsBi-Pin

Light TypeFluorescent

Screw6-32 X 7/8 Zinc-Plated

Style NamePedestal

Mechanical Specifications

Contact Type: Turn-Type

Rated Wattage: 660W

Voltage: 600 Volt

Mounting TypeScrew Mount

Termination2 Terminal Screws

Specifications

Country of Origin: Mexico

RoHS CompliantTrue
