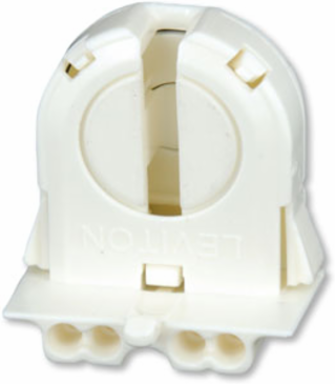

Leviton 13652-WP Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Extra-Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Extra-Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post
  • MPN: 13652-WP
  • UPC: 078477110867
  • PPN: LEV-13652-WP

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2.27/ EA

Description

Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Extra-Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Specifications

Standards and Certifications

NOM Certified
057
VDE
Certified to IEC
CSA CertifiedFile LR-1863
UL ListedFile E5833

Product Features

Warranty
1 Year Limited
Mounting Type
Snap-In or Slide-ON
Color
White
Country Of Origin
Mexico
Lamp Base
Medium
Body Material
Thermoplastic
Style Name
Extra-Low Profile
Termination
Quickwire 18AWG Solid
Lamp Type
T8 Only
Rated Wattage
660W
ScrewPanel Locator Post
Light TypeFluorescent
NotesWith Panel Locator Post
Standards and CertificationsUL/CSA/NOM
Lamp ContactsBi-Pin
Panel Thickness22-25 Ga. Panel
Contact TypeLamp-Lock
Lampholder TypeLinear
AvailabilityOEM Only
Contact MaterialCopper-Alloy

Mechanical Specifications

Mounting Type
Snap-In or Slide-ON
Voltage
600 Volt
Contact Type
Lamp-Lock
Rated Wattage
660W
Panel Thickness22-25 Ga. Panel
Wire Strip Length3/8 Inch
TerminationQuickwire 18AWG Solid
