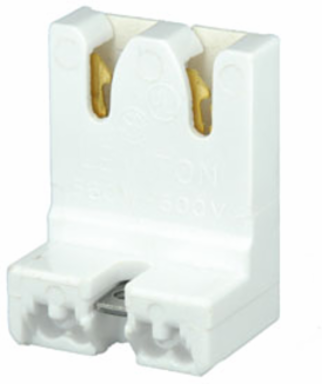

Leviton 13451-N Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Screw Mount, Straight-In Double Edge, , Quick-Connect 18AWG Solid or Str. Tinned - White Captive Nut Screws Packed Bulk

MPN: 13451-N
UPC: 078477854402
PPN: LEV-13451-N

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.71/ EA

Qty:

Loading add to cart quantity...

Description

Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Screw Mount, Straight-In Double Edge, , Quick-Connect 18AWG Solid or Str. Tinned - White Captive Nut Screws Packed Bulk

Specifications

Product Features

Lamp Base: Medium

Lamp Type: T8 Only

Light Type: Fluorescent

Rated Wattage: 660W

Style Name: Low Profile

Warranty: 1 Year Limited

Lamp ContactsBi-Pin

Lampholder TypeLinear

NotesCaptive Nut Screws Packed Bulk

Standards and CertificationsUL/CSA/NOM

Voltage600 Volt

Mechanical Specifications

Availability: Distribution

Color: White

Contact Type: Straight-In Double Edge

Nut: 6-32 Zinc-Plated

Screw: 6-32 X 3/8 Zinc-Plated

Wire Strip Length: 3/8 Inch

Body MaterialThermoset

Contact MaterialCopper-Alloy

Mounting TypeScrew Mount

Panel Thickness20 Ga. Panel

TerminationQuick-Connect 18AWG Solid or Str. Tinned

Standards and Certifications

CSA Certified: File LR-5863

UL Listed: File E5833

NOM Certified057

Specifications

Country of Origin: Please Contact Customer Service

RoHS CompliantFalse
