Leviton

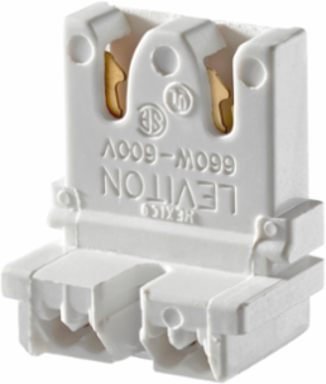

Leviton 13451-20 Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Slide-On, Straight-In Double Edge, , Quick-Connect 18AWG Solid or Str. Tinned - White

Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Slide-On, Straight-In Double Edge, , Quick-Connect 18AWG Solid or Str. Tinned - White
  • MPN: 13451-20
  • UPC: 078477129340
  • PPN: LEV-13451-20

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.48/ EA

Description

Medium Base, T8 Only Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Slide-On, Straight-In Double Edge, , Quick-Connect 18AWG Solid or Str. Tinned - White

Specifications

Mechanical Specifications

Contact Type
Straight-In Double Edge
Panel Thickness
20 Ga. Panel
Termination
Quickwire 18AWG Solid or Str. Tinned
Wire Strip Length
3/8 Inch
Mounting TypeSlide-On
Rated Wattage660W
Voltage600 Volt

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantTrue

Product Features

Availability
Distribution
Color
White
Lamp Base
Medium
Lamp Type
T8 Only
Light Type
Fluorescent
Style Name
Low Profile
Body MaterialThermoset
Contact MaterialCopper-Alloy
Lamp ContactsBi-Pin
Lampholder TypeLinear
Standards and CertificationsUL/CSA/NOM
Warranty1 Year Limited

Standards and Certifications

CSA Certified
File LR-5863
UL Listed
File E5833
NOM Certified057
