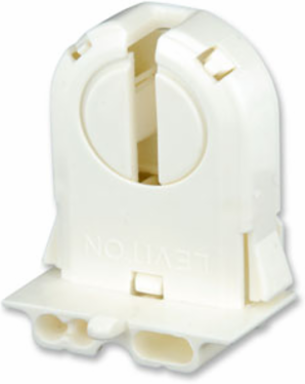

Leviton 23653-WP Medium Base, T8-T12 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, Internal Shunt, Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Medium Base, T8-T12 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, Internal Shunt, Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post
  • MPN: 23653-WP
  • UPC: 078477139738
  • PPN: LEV-23653-WP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.12/ EA

Description

Medium Base, T8-T12 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, Internal Shunt, Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Specifications

Product Features

Availability
Distribution
Color
White
Feature
Internal Shunt
Lamp Contacts
Bi-Pin
Lampholder Type
Linear
Notes
With Panel Locator Post
Standards and Certifications
UL/CSA/NOM
Warranty
1 Year Limited
Body MaterialThermoplastic
Contact MaterialCopper-Alloy
Lamp BaseMedium
Lamp TypeT8 - T12
Light TypeFluorescent
ScrewPanel Locator Post
Style NameLow Profile

Mechanical Specifications

Contact Type
Lamp-Lock
Panel Thickness
22-25 Ga. Panel
Termination
Quickwire 18AWG Solid
Wire Strip Length
3/8 Inch
Mounting TypeSnap-In or Slide-ON
Rated Wattage660W
Voltage600 Volt

Standards and Certifications

CSA Certified
File LR-1863
UL Listed
File E5833
NOM Certified057
VDECertified to IEC

Specifications

Country of Origin
Mexico
RoHS CompliantFalse
