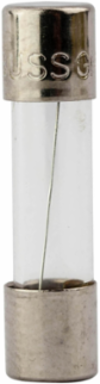

Bussmann GMC-2-R Medium Time-Delay Fuse 2A 250 Vac 0.75 Inch Length
- MPN: GMC-2-R
- UPC: 051712642873
- PPN: BUS-GMC-2-R
CAD
$1.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Medium Time-Delay Fuse 2A 250 Vac 0.75 Inch Length
Features
- Formulated with a precise medium time-delay signature, the GMC-2-R withstands brief, non-damaging inrush currents without opening prematurely. This specialized response curves up to 60 minutes at 135% and a maximum of 2 minutes at 200% overcurrent, effectively eliminating frustrating nuisance trips while providing robust, ironclad protection against sustained overloads.
- Measuring exactly 5mm in diameter by 20mm in length, this industry-standard cartridge footprint fits seamlessly into thousands of commercial and consumer circuit designs. Whether replacing a blown component in an industrial control panel, a piece of lab instrumentation, or a power supply, its strict physical sizing removes the guesswork out of maintenance and retrofitting.
- Rated for operations up to 250V AC (and self-certified for up to 32V DC), this electronic fuse features dual interrupt thresholds capable of isolating up to 100A at 250V AC and a massive 10kA at 125V AC. This robust interrupting capability limits destructive arc energy from reaching downstream circuit components, significantly lowering the risk of terminal damage or circuit board fires.
- Utilizing a crystal-clear, non-indicating glass tube architecture paired with nickel-plated brass endcaps, this fuse allows maintenance technicians to perform an instant visual inspection for a broken filament or internal discoloration. This transparent construction shortens troubleshooting times on the factory floor while maintaining highly stable, low-resistance ferrule connections.
- Fully compliant with UL Guide JDYX (File E19180) and CSA Class 1422-01 (File E65063) regulatory standards, this component guarantees absolute manufacturing consistency and low-resistance conductivity ($0.043\ \Omega$ typical cold resistance). Deploying certified overcurrent hardware ensures your machinery meets strict workplace safety standards and safeguards business equipment liability.
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 250 Vac, 32 Vdc
- Interrupt Rating
- 100A at 250 Vac, 10 kAIC at 125 Vac
- Length
- 0.75 in
- Height
- 0.25 in
- Weight
- 0.002 lb
- Fuse Indicator
- Non Indicating
- Used With
- out axial leads
Amperage Rating2A
Response Time60 min max at 135%, 2 min max at 200%
Width0.25 in
MaterialGlass tube, nickel-plated brass endcaps
TypeElectronic - small dimension
ConnectionFerrule end X ferrule end
ComplianceRoHS, CE Marked, UL Listed, CSA Certified
