Bussmann

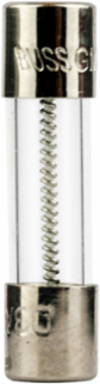

Bussmann GMD-3-R Time-Delay Fuse 3A, 250 Vac, 0.25 Inch Length, Electronic, Glass Tube

Time-Delay Fuse 3A, 250 Vac, 0.25 Inch Length, Electronic, Glass Tube
  • MPN: GMD-3-R
  • UPC: 051712657907
  • PPN: BUS-GMD-3-R

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$2.07/ EA

Description

Time-Delay Fuse 3A, 250 Vac, 0.25 Inch Length, Electronic, Glass Tube

Features

  • Sized to the global standard 5x20mm miniature footprint, this glass tube fuse is a direct-replacement solution for high-density circuit boards and small appliance fuse holders. The compact design allows for easy installation in tight spaces, ensuring your medical equipment, consumer electronics, or industrial power supplies are restored to full functionality with OEM-spec hardware.
  • Optimized for low-power applications, this 3-amp fuse provides precision defense for sensitive components at voltages up to 250V AC. The transparent glass body allows for an immediate, clear visual confirmation of a blown internal element, saving you valuable diagnostic time by eliminating the need for constant continuity testing during troubleshooting.
  • This Bussmann fuse is fully RoHS compliant and UL/CSA certified, meeting the strictest global standards for lead-free construction and electrical safety. Utilizing a high-quality nickel-plated brass endcap design, it ensures superior conductivity and corrosion resistance, protecting your investment from electrical faults while adhering to corporate sustainability and safety mandates.

Specifications

Voltage
250 Vac, 32 Vdc
Interrupt Rating
100A at 250 Vac (p.f.=.7-.8), 10 kAIC at 125 Vac (p.f.=.7-.8)
Length
0.25 in
Width
0.197 in
Connection
Ferrule end X ferrule end
Fuse Indicator
Non Indicating
Material
Glass tube, nickel-plated brass endcaps
Amperage Rating3A
Response Time60 min max at 135%, 5 s min at 200%, 2 min max at 200%
Height0.788 in
Weight0.005 lb
Fuse TypeTime-delay
TypeElectronic - small dimension
ComplianceRoHS, CE Marked
