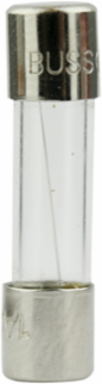

Bussmann GMC-4A Medium Time-Delay Fuse 4A 125 Vac, 0.75 Inch Length, Glass Tube Construction
- MPN: GMC-4A
- UPC: 051712143271
- PPN: BUS-GMC-4A
CAD
$2.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This medium time-delay fuse from Bussmann is an essential component for electronic circuits, providing reliable protection with its 4A amperage rating. Constructed with a durable glass tube and nickel-plated brass endcaps, it is designed to withstand harsh conditions while maintaining a compact size of just 0.75 inches in length. Certified with a CE mark and compliant with RoHS standards, this fuse ensures safety and environmental responsibility. Its time-delay feature allows a maximum response time of 60 minutes at 135% and 2 minutes at 200%, making it suitable for applications that require a delay before interruption. With an interrupt rating of 10 kAIC at 125 Vac, this fuse ensures dependable circuit protection, making it a vital component for electronic applications.
Features
- Rated for a 4-amp current capacity at up to 125V AC, this medium-time-delay glass tube fuse ensures reliable electrical protection for electronic circuits. By managing standard current levels while tolerating temporary inrush spikes, it effectively prevents nuisance blowing in sensitive components and keeps your equipment running smoothly without unnecessary downtime.
- Engineered with time-delay (slo-blo) characteristics, the GMC-4A safely absorbs transient current surges typically caused by small motors or inductive loads upon startup. This delay mechanism prevents the fuse from blowing prematurely during minor fluctuations, saving you the hassle of frequent replacements while maintaining robust short-circuit defense.
- Engineered to the universal 5mm x 20mm miniature cartridge footprint, this North American ferrule fuse effortlessly drops into standard PCB clips, panel-mount blocks, or inline fuse holders.
- Constructed from premium transparent glass and heavy-duty nickel-plated brass endcaps, this non-indicating fuse ensures optimal electrical conductivity and resistance to terminal oxidation. The clear glass tube design offers instant visual inspection, allowing maintenance technicians to confirm a blown element quickly during troubleshooting procedures.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 Vac, 32 Vdc
- Interrupt Rating
- 10 kAIC at 125 Vac
- Length
- 0.75 in
- Width
- 0.25 in
- Connection
- Ferrule end X ferrule end
- Fuse Indicator
- Non Indicating
- Compliance
- RoHS
Amperage4A
Response Time60 min max at 135%, 2 min max at 200%
Height0.25 in
Weight0.002 lb
MaterialGlass tube, nickel-plated brass endcaps
TypeElectronic - small dimension
