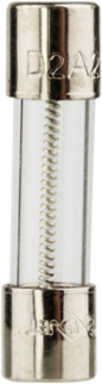

Bussmann GMD-2-R Time-Delay Fuse 250 Vac, 2A, 0.625 Inch x 0.25 Inch, Electronic Application

Time-Delay Fuse 250 Vac, 2A, 0.625 Inch x 0.25 Inch, Electronic Application
  • MPN: GMD-2-R
  • UPC: 051712657877
  • PPN: BUS-GMD-2-R

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$2.07/ EA

Description

Time-Delay Fuse 250 Vac, 2A, 0.625 Inch x 0.25 Inch, Electronic Application

Features

  • The Bussmann GMD-2-R is a standard 5 x 20mm glass tube fuse. This metric size is used extensively in European and Asian-designed appliances, power supplies, and control boards found in Canadian laboratories and offices. The "R" in the part number denotes that it is RoHS compliant (lead-free).
  • This fuse is rated for 2 Amps at 250V AC. It is a Time-Delay (Slow-Blow) fuse, meaning it is designed to withstand short-duration current surges—like those caused by a motor starting or a capacitor charging—without blowing. This prevents "nuisance trips" in devices that have an initial power spike when turned on.
  • The clear glass body allows for a quick visual check of the internal filament. Unlike ceramic fuses, you can instantly see if the wire inside has melted or if there is dark "splatter" inside the tube, which indicates a high-energy short circuit. This makes troubleshooting much faster for maintenance teams.
  • As a glass-bodied fuse, the GMD series has a Low Breaking Capacity. It is rated to safely interrupt 35A at 250V or 10,000A at 125V. It is intended for use in low-power electronic equipment where the available fault current is relatively small; it should not be used as a primary branch circuit protector.

Specifications

Voltage
250 Vac, 32 Vdc
Interrupt Rating
100A at 250 Vac, 10 kAIC at 125 Vac
Type
Electronic small dimension, time-delay glass tube fuse
Width
0.25 in
Material
Glass tube with nickel-plated brass endcaps
Connection
Ferrule end X ferrule end
Compliance
RoHS, CE
Amperage2A
Response TimeMax 60 min at 135%, 5 s min at 200%, 2 min max at 200%
Length0.625 in
Height0.25 in
Fuse IndicatorNon Indicating
Weight.002 lb
ApplicationElectronic circuits
