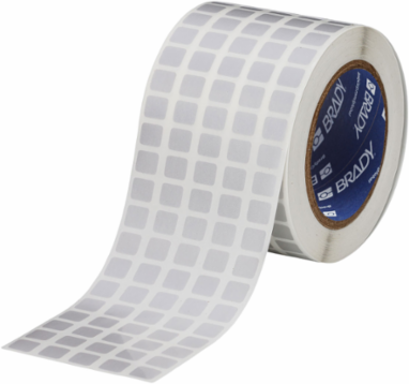

Brady THT-12-413-10 Metal Polyester Labels, 0.437" H x 0.5" W, Roll of 10000 Labels, Light Gray
- MPN: THT-12-413-10
- UPC: 662820579502
- PPN: BRD-THT-12-413-10
- UNSPSC: 55121612
CAD
$253.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Non-Metal Polyester (B-413) is a thermal transfer polyester material with a metallic-looking finish. Ideal for barcoded asset tracking and rating plate applications.
Features
- Light gray top coated material with permanent adhesive adheres to most clean, dry surfaces
- Thermal transfer printable
- UL approved
- Service temperature of -70 to 110° F (-56°C to 43° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Component and Equipment Labeling; General Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Diagram
- Icon 26 (hexagon)
- Finish
- Satin
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6002; R6002
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- MetaLabel
- Adhesive Type
- Permanent Acrylic
- Label Properties
- Aggressive Adhesive Labels; Heat Resistant Labels; Metallic Labels; Permanent Adhesive Labels
- Material Properties
- Metallic Appearance
- SAP B-Number
- B-413
- Dimensions
- 0.437 in H x 0.5 in W
- Dimensions 2
- 0.437 in H x 0.5 in W
- Height (mm/cm/m)
- 11.10 mm
- Label/Tape Size (in/ft/yd)
- 0.437 in H x 0.5 in W
- Maximum Service Temperature °F
- 230 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 11.1 mm
- Sign Size-General
- 0.437 in x 0.5 in
- Thickness (in/ft/yd)
- 0.0034 in
- Vertical Repeat
- 0.537 in
- Web Width (mm/cm/m)
- 85.09 mm
- Width (mm/cm/m)
- 12.7 mm
Brand NameBrady®
ColorLight Gray
Corner TypeRounded Corners
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board; General Identification; Inspection Repair; Rating & Name Plates
Printer Compatibility (Print)i7100; i5100
Quantity per Row5
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4400; R4900; R6000 Halogen Free; R6200
Total Quantity10000
Adhesive (Y/N)Yes
Brady Material NumberB-413
MaterialMetallic, Non-metal Polyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)12.70 mm W x 11.10 mm H
Height (in/ft/yd)0.437 in
Horizontal Repeat (mm)16.81 mm
Maximum Service Temperature °C110 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)11.1 mm H x 12.7 mm W
Printable Area Width (mm/cm/m)12.7 mm
Size - Width (mm)12.70 mm
Thickness (mm/cm/m)0.086 mm
Vertical Repeat (mm)13.64 mm
Width (in/ft/yd)0.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
