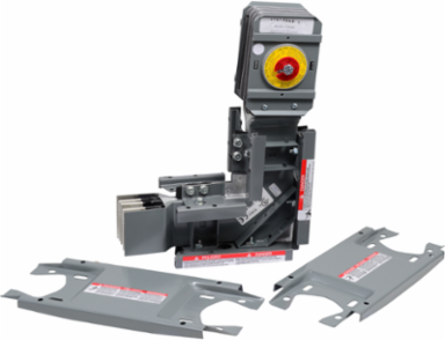

Square D AF2312GLEM11 I-Line Busway Elbow, 1200A, 3-Wire, Ground, Aluminum, 11 Inch x 11 Inch

MPN: AF2312GLEM11
UPC: 785901807445
PPN: SCH-AF2312GLEM11
UNSPSC: 39131701

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric AF2312GLEM11 I-Line Busway Elbow is engineered for efficient power distribution, supporting a capacity of 1200A in a resilient aluminum construction. This 3-wire elbow integrates seamlessly within your busway system, facilitating easy connections while maintaining reliable grounding. With its practical design measuring 11 inches by 11 inches, it's an essential component for enhancing electrical layouts in both commercial and industrial applications, ensuring optimal flow of electricity with minimal interruption.

Features

Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
Sandwich-type construction for improved voltage drop
Rated up to 600V, up to 5000A for copper conductors and 4000A for aluminum
Rated for 100% continuous current
This product is TAA, and BAA via COTS compliant.

Documentation & Downloads

Specifications

Key Specifications

Compliance	\|TAA Compliant \| BAA Compliant via COTS

Weight	12604 g

Complementary Attributes

Line Rated Current	1200-1200 A

Ue Rated Operational Voltage	600 V AC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase A4	24.24182624730748, 24 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.9758114557291153, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	608 kg CO2 eq., 608.2764313067869
Local Publishable Date	2026-09-04
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Material	aluminium: busbar
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	50 percent capacity integral ground bus
Returnability	Yes
Sustainable Packaging	No
Wiring Configuration	3-wire
Data Source	extrapolated product
Length Total	11 in
Customs Code	8544499000
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional Unit Unit	Unit
Recyclability Potential In %	92

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C4	18 kg CO2 eq., 17.733302434400034
Carbon Footprint Of The Manufacturing Phase A1 To A3	106 kg CO2 eq., 106.321660830535
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Busbar Position	edgewise
Phase	3 phase
Product Or Component Type	elbow
Range Of Product	I-Line
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	759 kg CO2 eq.
Database Version	2024-01
Height Nominal	11 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	758.5490322747585
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-01-31
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2412020EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2412020EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
