Burndy YAV35M5 Copper Tubing Terminal, 1 Hole, 35 mm Class, 5 mm Stud Size, Rated 35 kV

MPN: YAV35M5
UPC: 781810323434
PPN: BUR-10016267

$24.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Tubing Terminal, 1 Hole W/insp window, 35 mm Class 2,5, 10 Index, 5 mm Stud

Documentation & Downloads

Specifications

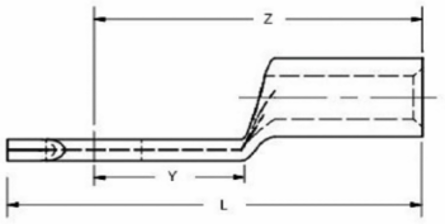

Dimensions

Dimension - B Length fraction	11/16 in
Dimension - Bolt Hole Size inch	0.15 in
Dimension - Hole Size inch	0.21 in
Dimension - Inside Diameter inch	0.31 in
Dimension - Length Overall inch	0.10 in
Dimension - Pad Width inch	0.63 in
Dimension - Stud Size inch	#5
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	0.63 in
Dimension - D inch	0.51 in
Dimension - Hole Size mm	5 mm
Dimension - L Length Overall mm	3 mm
Dimension - N inch	0.26 in
Dimension - Strip Length inch	0.67 in
Dimension - Z inch	0.27 in

Certifications and Compliance

Standards - RoHS Compliance Status	CM

Conductor Related

Conductor - Copper DLO Size Range	N/A

General

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	1
Plated	Y
Temperature Rating	194
Type	Metric Terminals
UPC 12 Digit	7818103234344
