Burndy YAV95M12 Metric Terminal 1 Hole 2/0 AWG Copper 35 kV Electro Plated Tin
- MPN: YAV95M12
- UPC: 781810237540
- PPN: BUR-25020104
CAD
$31.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 95mmClass2, M12 stud, Tin - Electro Plated, 14 Index
Documentation & Downloads
Specifications

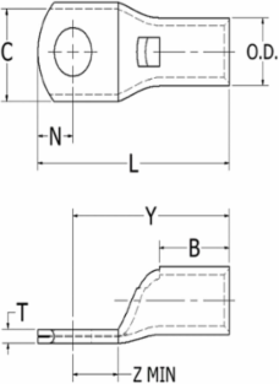

Dimensions
| Dimension - B Length inch | 0.81 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 13.5 |
| Dimension - Length Overall inch | 2.36 |
| Dimension - Outside Diameter inch | 0.63 |
| Dimension - Strip Length inch | 0.87 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Hole Size inch | 0.52 in |
|---|---|
| Dimension - Hole Size inch | 0.53 |
| Dimension - L Length Overall mm | 59.9 |
| Dimension - N inch | 0.47 in |
| Dimension - Pad Width inch | 0.93 in |
| Dimension - Z inch | 0.55 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper Str Size | 2/0 |
|---|---|
| Conductor Type | CU C Str-Size |
| Conductor - Copper Str Size Range | 95 mm², 2/0 AWG |
|---|
General
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810237540 |
| Die Index | 14 |
|---|---|
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| Type | Metric Terminals |
| UPC 12 Digit | 7818102375400 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
