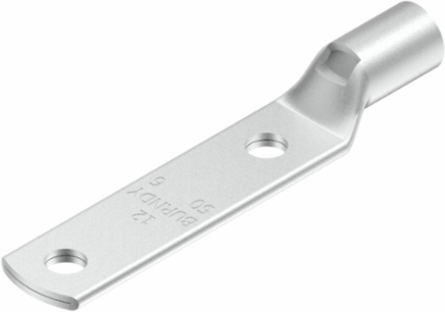

Burndy YAV1502M12 Metric Tubular Terminal, 2 Hole, 150 mm, Tin-Electro Plated, 35 kV Rating
- MPN: YAV1502M12
- UPC: 781810442739
- PPN: BUR-10068036
CAD
$97.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non Insul Cu Comp Tubular Terminal, Metric, 2 Hole/W/InspWindow, 150 mm, M12 Stud, Tin-Electro Plated, 17 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-3/50 in |
|---|---|
| Dimension - D inch | 2.66 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 4.45 in |
| Dimension - Outside Diameter inch | 0.88 in |
| Dimension - Strip Length inch | 1.06 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 26.2 in |
|---|---|
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 113 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 30.5 in |
| Dimension - Z inch | 0.55 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Size Range | 300 |
| Conductor - Copper Str Size | 300 |
|---|---|
| Conductor Type | CU C Str-Size |
General
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Metric Terminals |
| UPC 12 Digit | 7818104427399 |
| Die Index | 17 |
|---|---|
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810442739 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
