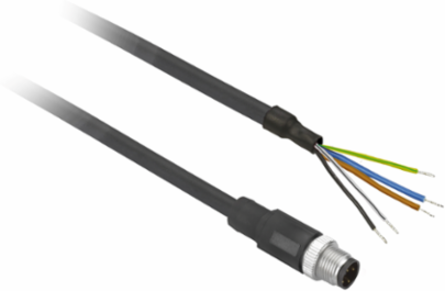

Telemecanique Sensors XZCP1541L2 Pre wired connectors XZ, straight male, M12, 4 pins, cable PUR 2 m
- MPN: XZCP1541L2
- PPN: TES-XZCP1541L2
- UNSPSC: 39122230
CAD
$66.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, straight male, M12, 4 pins, cable PUR 2 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.2 mm
- Wire Insulation Material
- PUR
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight male connector M12, 4 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Length2 m
Cable Composition4 x 0.34 mm²
Net Weight0.085 kg
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-40-80 °C static || -5-80 °C flexing
Ip Degree Of ProtectionIP69K || IP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1308015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1308015
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
