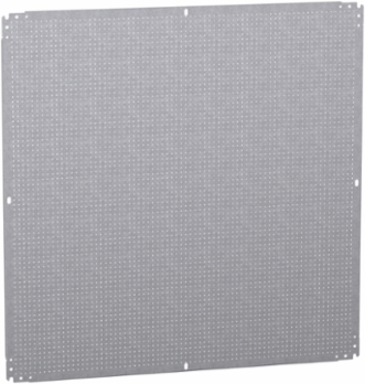

Schneider Electric NSYMF1010 Microperforated Mounting Plate 1000x1000mm with 3.6mm Holes
- MPN: NSYMF1010
- PPN: SCH-NSYMF1010
CAD
$348.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is1000 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel.
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Nominal Dimensions
- H: 1000 mm W: 1000 mm
- Material
- galvanised steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Range
- Spacial
Range CompatibilitySpacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
Accessory / Separate Part Categorymounting accessory
Product Or Component Typemounting plate
Mounting Plate Descriptionmicroperforated
Mounting Locationdirect fixing on backstuds || step slide
Complementary
- Surface And Useful Surface
- 90.3 dm²
- Height
- 950 mm
- Thickness
- 2.5 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Width950 mm
Maximum Load250 kg S3D, CRN, S3X enclosures || 150 kg PLM enclosure
Net Weight17.826 kg
Permanent Permissible Load225.6 kg S3D, CRN, S3X enclosures || 135.4 kg PLM enclosure
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
