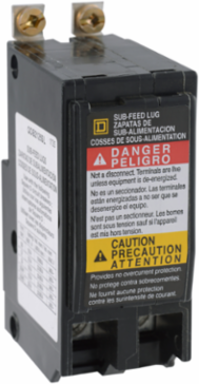

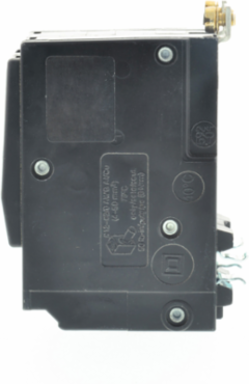

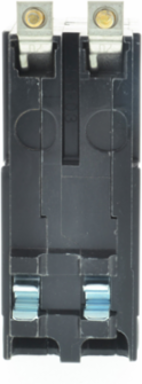

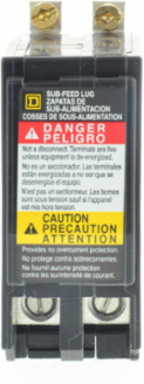

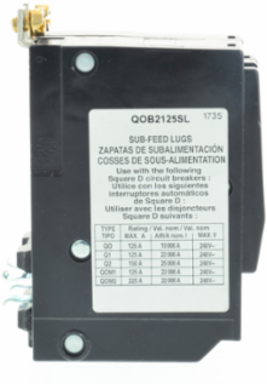

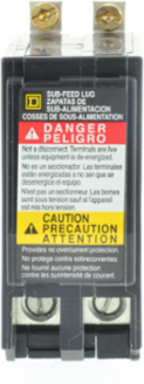

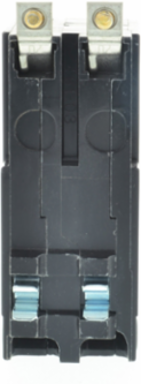

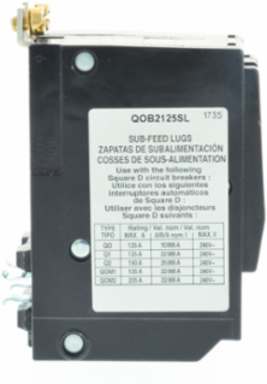

Square D QOB2125SL Mini circuit breaker accessory, lug kit, 125A, 2 pole, 2 spaces, subfeed
Square D QOB2125SL Mini circuit breaker accessory, lug kit, 125A, 2 pole, 2 spaces, subfeed
- MPN: QOB2125SL
- UPC: 785901031352
- PPN: SCH-QOB2125SL
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$362.48/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QOB miniature circuit breaker two pole subfeed lug kit is rated 125 A at 240 VAC. Two spaces are required when this kit is used. Lugs will accept 12 AWG to 2/0 AWG aluminum or copper wire. The breaker is 3.50 inches tall, 1.494 inches wide and 2.31 inches deep. The lug kit is UL component recognized and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Specifications
- Range Of Product
- QO
- [In] Rated Current
- 125 A
- Number Of Spaces
- 2
[Ue] Rated Operational Voltage240 V AC
Product Or Component Typelug kit
Network Number Of Phases2 phases
Complementary
- Product Certifications
- CSA || cURus
- Mounting Mode
- bolt-on
- Width
- 1.494 in
- Number Of Poles
- 2
Height3.500 in
Awg GaugeAWG 12...AWG 2/0 copper or aluminum
Depth2.310 in
