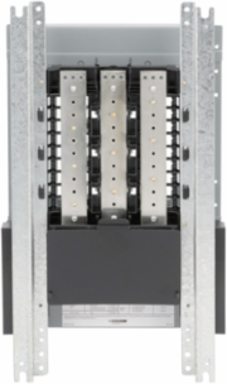

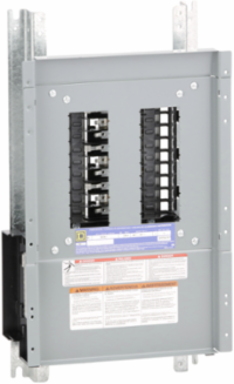

Square D NQ418L1 NQ Panelboard Interior 100A 3 Phase 4 Wire 240VAC 18 Circuit Spaces
- MPN: NQ418L1
- UPC: 785901502128
- PPN: SCH-NQ418L1
CAD
$636.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for nonlinear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A three phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 18 circuits and has an aluminum bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 27 inches tall and 10.44 inches wide. Lug connections will accept 6 AWG to 2/0 AWG aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Material
- aluminium
Product Or Component Typeinteriors
Loadcentre TypeMain lugs
Complementary
- Height
- 27 in
- Tightening Torque
- 4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
- Number Of Spaces
- 18
- Network Number Of Phases
- 3 phases
- [In] Rated Current
- 100 A
- Wiring Configuration
- 4-wire
- [Ue] Rated Operational Voltage
- 240 V AC || 48 V DC
Connections - Terminalslug line AWG 6...AWG 2/0 aluminum || lug neutral AWG 6...AWG 2/0 aluminum
[Iu] Rated Interrupted Current10 kA || 22 kA || 65 kA
Enclosure Nominal Height26 in
Enclosure Nominal Depth5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
Width10.44 in
Enclosure Nominal Width20 in
Environment
- Standards
- UL || CSA
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404019EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
