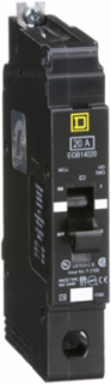

Square D EGB14020 Mini Circuit Breaker 20A 1 Pole 277VAC 65kA Bolt-On

MPN: EGB14020
UPC: 785901072973
PPN: SCH-EGB14020
UNSPSC: 39121603

$407.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.

Features

Used in lighting panelboards
Superior overload and short circuit protection
From 15A to 125A ratings
Troubleshoot faster with Visi-Trip™
This product is TAA compliant.
Made to last 20 years

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Weight	612.3 g

Compliance	TAA Compliant
Depth	4.05 in

Complementary Attributes

Line Rated Current	20 A

Ue Rated Operational Voltage	277 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM
Circuit Breaker Application	HACR rated, HID rated, Switching Duty rated
Carbon Footprint Of The Distribution Phase A4	0.19667230088173196, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.23190530454352834, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 kg CO2 eq., 1.40182223402897
Local Publishable Date	2026-03-25
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	12 AWG...6 AWG aluminium14 AWG...6 AWG copper
Electrical Connection	lugs aluminium
Holding Current	270 A
Module Type	E-Frame
Number Of Poles	1
Number Of Spaces Required	1
Product Destination	NF panelboard
Range Of Product	125 A Frame EDB-EGB-EJB
Software Version	v6.2.5-6
Tightening Torque	3.4-3.4 N.m 2.5-16 mm² (14 AWG...6 AWG)
Trip Unit Rating	875-875 A
Database Version	2024-01
Height Nominal	5.66 in
Certificate Agency	cULus
Customs Code	8536200040
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	30

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Protection Type	short-circuit, overload
Carbon Footprint Of The End Of Life Phase C1 To C4	1 kg CO2 eq., 0.9564837884210498
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 4.385357696048144
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Device Short Name	EGB
Energy Efficiency Optimized	False
Local Signalling	trip indicator
Mounting Mode	bolt-on
Number Of Spaces	1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	miniature circuit-breaker
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	7 kg CO2 eq.
Trip Unit Technology	thermal-magnetic
Data Source	extrapolated product
Width Nominal	0.98 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	7.172241323923425
Environmental Disclosure	ENVPEP2510013EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2510013EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
