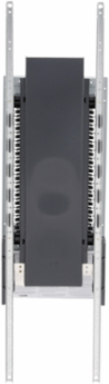

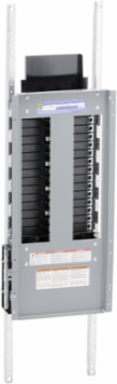

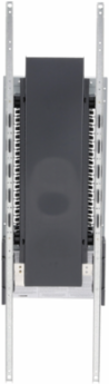

Square D NF430L6C NF Panelboard Interior, 600A, 30 Spaces, Copper Bus, 3 Phase, 4 Wire
- MPN: NF430L6C
- UPC: 785901116196
- PPN: SCH-NF430L6C
CAD
$1861.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NF Panelboard Interior, 600A, 30 Spaces, Copper Bus, 3 Phase, 4 Wire
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 50 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Tightening Torque
- 42.37-42.37 N.m 53.48-152 mm² (AWG 1/0...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (AWG 1/0...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (AWG 1/0...750 kcmil)
- Connections - Terminals
- lug line AWG 1/0...750 kcmil aluminium, lug neutral AWG 1/0...750 kcmil aluminium
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 34 kg CO2 eq., 34.2901319653
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 206 kg CO2 eq., 206.1806738118
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- copper
- Phase
- 3 phase 4 wires
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2303003EN
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential, In %
- 94
- Width Nominal
- 10.44 in
- [Iu] Rated Interrupted Current
- 65 kA
- Package Weight(Lbs)
- 14.061 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL 67, CSA C22.2
Carbon Footprint Of The Distribution Phase [A4]4.0531142639, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.2194179086, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]45 kg CO2 eq., 44.7034603503
Local Publishable Date2025-11-18
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Circuit Breaker TypeEDB/EDG/EDJ
Load Center Typemain lugs
Number Of Spaces30
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv5.9.4
Total Lifecycle Carbon Footprint290 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh100.21
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; CA / Electricity Mix; Production mix; Low voltage; US
Height Nominal46 in
[Ue] Rated Operational Voltage600Y/347 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 290.4467982999
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303003EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
