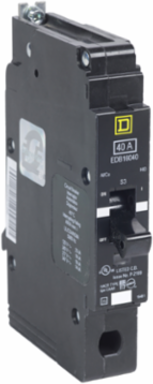

Square D EDB16040 Mini Circuit Breaker, E-Frame, 40A, 1 Pole, 600Y/347 VAC, 25 kA Max
- MPN: EDB16040
- PPN: SCH-EDB16040
CAD
$263.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 40A, 1 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Module Type
- E-Frame
- Trip Unit Rating
- 1800-1800 A
- Device Short Name
- EDB
Range Of Product125 A Frame EDB-EGB-EJB
Product Or Component Typecircuit-breaker
Complementary
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- bolt-on
- Tightening Torque
- 3.9-3.9 N.m 2.5-6 mm² AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² AWG 8...AWG 2/0)
- Product Destination
- NF panelboard
- Number Of Spaces Required
- 1
- Protection Type
- overload || short-circuit
- Awg Gauge
- AWG 12...AWG 2/0 aluminum || AWG 14...AWG 2/0 copper
- Depth
- 4.05 in
- Breaking Capacity
- 14 kA 600Y/347 V AC
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 600Y/347 V AC
Height5.66 in
Holding Current630 A
Breaking Capacity CodeD
Electrical Connectionlugs aluminum
[In] Rated Current40 A
Local Signallingtrip indicator
Width0.98 in
Number Of Spaces1
Net Weight2 lb(US)
Number Of Poles1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- IEC || cULus
Ambient Air Temperature For Operation40 °C
