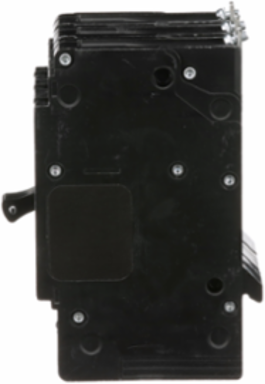

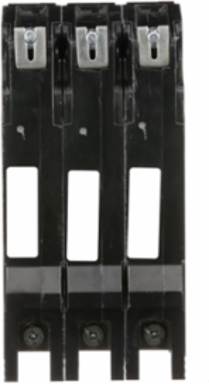

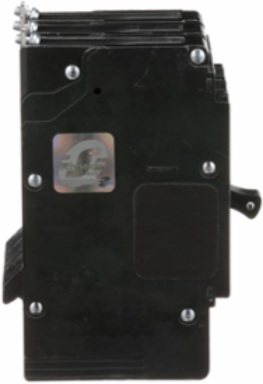

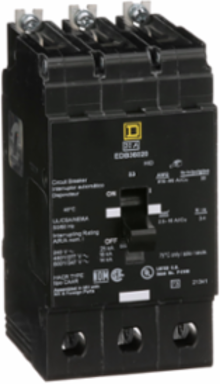

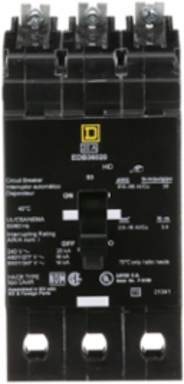

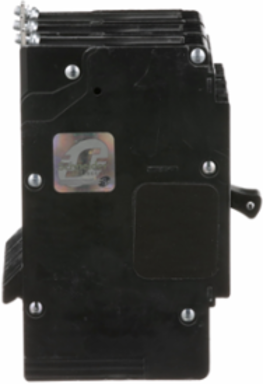

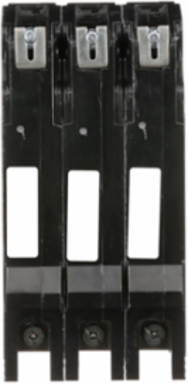

Square D EDB36050 Mini Circuit Breaker 50A 3-Pole 600Y/347 VAC Bolt-On
- MPN: EDB36050
- UPC: 785901234807
- PPN: SCH-EDB36050
CAD
$879.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 50A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Features
- EDB36050 is an E-Frame branch circuit breaker engineered explicitly for bolt-on installation inside commercial Square D NF series panelboards. Its premium bolt-on connection guarantees a secure, vibration-resistant mechanical link to the copper or aluminum bus bar, preventing the common loose connections associated with standard snap-in alternatives.
- This heavy-duty 3-pole molded case circuit breaker delivers a continuous 50 Amp line-rated current operating at a maximum system voltage of 600Y/347 VAC. It provides code-compliant, three-phase overload protection capable of handling rigorous commercial and industrial electrical distribution systems without nuisance tripping.
- Outfitted with Schneider Electric s signature local trip signaling mechanism, the integrated toggle handle moves to a distinct center position to clearly indicate an electrical fault event. This clear visual diagnostic minimizes costly operational downtime by allowing field electricians to instantly isolate the tripped branch and troubleshoot the line at a glance.
- The load side comes equipped with factory-installed aluminum mechanical lugs designed to reliably terminate a broad spectrum of field wiring. The rugged mechanical terminals securely accept copper wire gauges from AWG 14 down to AWG 2/0, or aluminum conductors from AWG 12 down to AWG 2/0, giving your installation team complete on-site wiring flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Compliance
- TAA Compliant
Depth4.05 in
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Awg Gauge
- AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
- Tightening Torque
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10), 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.4806406271641794
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 11.373424826595548
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Short Name
- EDB
- Energy Efficiency Optimized
- False
- Local Signalling
- trip indicator
- Mounting Mode
- bolt-on
- Number Of Spaces
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Trip Unit Rating
- 1800-1800 A
- Pep Code
- ENVPEP2510013EN
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 5.66 in
- Certificate Agency
- cULus
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Protection Typeshort-circuit, overload
Carbon Footprint Of The Distribution Phase [A4]0.510069596276646, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.601446388396412, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 kg CO2 eq., 1.40182223402897
Local Publishable Date2025-11-19
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Circuit Breaker ApplicationHACR rated
Electrical Connectionlugs aluminium
Holding Current630 A
Module TypeE-Frame
Number Of Poles3
Number Of Spaces Required3
Product DestinationNF panelboard
Range Of Product125 A Frame EDB-EGB-EJB
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint16 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %30
Width Nominal2.94 in
[Ue] Rated Operational Voltage600Y/347 V AC
Package Weight(Lbs)1.588 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 16.367403672461755
- Environmental Disclosure
- ENVPEP2510013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2510013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
