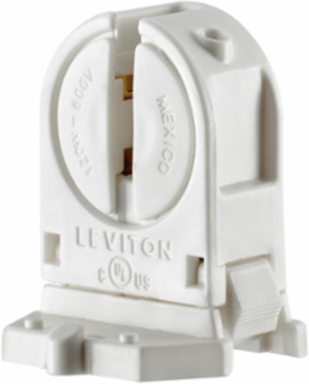

Leviton 13654-SWP Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post
  • MPN: 13654-SWP
  • UPC: 078477164846
  • PPN: LEV-13654-SWP

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.57/ EA

Description

Miniature Base, T5 Bi-Pin, Standard Fluorescent Lampholder, Low Profile, Snap-In or Slide-ON, Lamp-Lock, , Quickwire 18AWG Solid or Str Tinned - White With Panel Locator Post

Specifications

Product Features

Availability
OEM Only
Color
White
Lamp Base
Miniature
Lamp Type
T5
Light Type
Fluorescent
Screw
Panel Locator Post
Style Name
Low Profile
Body MaterialThermoplastic
Contact MaterialCopper-Alloy
Lamp ContactsBi-Pin
Lampholder TypeLinear
NotesWith Panel Locator Post
Standards and CertificationsUL/CSA/NOM
Warranty1 Year Limited

Standards and Certifications

CSA Certified
File LR-1863
UL Listed
File E5833
NOM Certified057

Mechanical Specifications

Contact Type
Lamp-Lock
Panel Thickness
22-25 Ga. Panel
Termination
Quickwire 18AWG Solid or Str. Tinned
Wire Strip Length
3/8 Inch
Mounting TypeSnap-In or Slide-ON
Rated Wattage120W
Voltage600 Volt

Specifications

Country of Origin
Mexico
RoHS CompliantFalse
