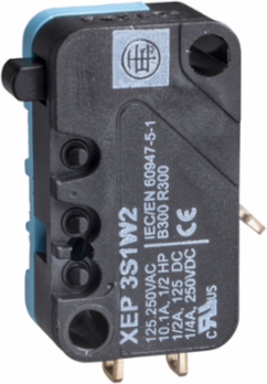

Telemecanique Sensors XEP3S1W6 Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, 4.8 mm cable clip tags
- MPN: XEP3S1W6
- PPN: TES-XEP3S1W6
- UNSPSC: 39122213
CAD
$13.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, 4.8 mm cable clip tags
Documentation & Downloads
Specifications
Key Specifications
- Switch Actuation
- on end
- Contacts Type And Composition
- 1 C/O standard
- Type Of Approach
- vertical approach
- Electrical Connection
- 4.8 mm cable clip tags
- Contacts Material
- AgNi
- Type Of Operator
- plunger
- Device Short Name
- XEP3
Series Namespecial format
Movement Of Operating Headlinear
Range Of ProductOsiSense XC
Contact Operationsnap action
Detector Designminiature, DIN 41635 A format
Product Or Component Typemicroswitch
Head Typeplunger head
Complementary
- Maximum Permissible End Of Travel Force
- 20 N lever fixing position in A || 20 N lever fixing position in B || 20 N lever fixing position in C
- Maximum Differential Travel
- 0.35 mm lever fixing position in A || 0.35 mm lever fixing position in B || 0.35 mm lever fixing position in C
- Inter Contact Distance
- 0.4 mm
- Mechanical Durability
- 20000000 cycles
- Tripping Point
- 14.7 mm lever fixing position in A || 14.7 mm lever fixing position in B || 14.7 mm lever fixing position in C
- Minimum Release Force
- 0.2 N lever fixing position in A || 0.2 N lever fixing position in B || 0.2 N lever fixing position in C
- Width
- 10 mm
- Depth
- 28 mm
Height16 mm
Terminals Description Iso N°1(1-2-4)OC
Minimum Over Travel1.2 mm lever fixing position in A || 1.2 mm lever fixing position in B || 1.2 mm lever fixing position in C
Body Materialpolyester
Maximum Force For Tripping0.8 N lever fixing position in A || 0.8 N lever fixing position in B || 0.8 N lever fixing position in C
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
[Ith] Conventional Free Air Thermal Current15 A 250 V 50/60 Hz
Net Weight5.6 g
Environment
- Ambient Air Temperature For Operation
- -25-125 °C
- Marking
- CE
StandardsEN 61058 || UL 1054 || cURus || IEC 60947-5-1 || EN 60947-5-1
Ip Degree Of ProtectionIP40
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
