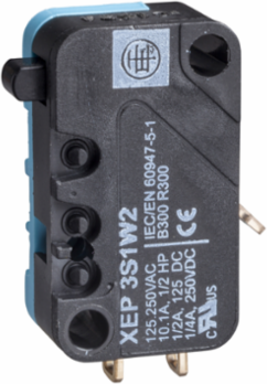

Telemecanique Sensors XEP3S1W2 Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, solder tags

Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, solder tags
  • MPN: XEP3S1W2
  • PPN: TES-XEP3S1W2
  • UNSPSC: 39122213

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.88/ EA

Specifications

Environment

Ambient Air Temperature For Operation
-25-125 °C
Marking
CE
StandardscURus || EN 60947-5-1 || IEC 60947-5-1 || UL 1054 || EN 61058
Ip Degree Of ProtectionIP40

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP110614EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Maximum Permissible End Of Travel Force
20 N lever fixing position in A || 20 N lever fixing position in B || 20 N lever fixing position in C
Maximum Differential Travel
0.35 mm lever fixing position in A || 0.35 mm lever fixing position in B || 0.35 mm lever fixing position in C
Inter Contact Distance
0.4 mm
Mechanical Durability
20000000 cycles
Tripping Point
14.7 mm lever fixing position in A || 14.7 mm lever fixing position in B || 14.7 mm lever fixing position in C
Minimum Release Force
0.2 N lever fixing position in A || 0.2 N lever fixing position in B || 0.2 N lever fixing position in C
Width
10 mm
Depth
28 mm
Height16 mm
Terminals Description Iso N°1(1-2-4)OC
Minimum Over Travel1.2 mm lever fixing position in A || 1.2 mm lever fixing position in B || 1.2 mm lever fixing position in C
Body Materialpolyester
Maximum Force For Tripping0.8 N lever fixing position in A || 0.8 N lever fixing position in B || 0.8 N lever fixing position in C
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
[Ith] Conventional Free Air Thermal Current15 A 250 V 50/60 Hz
Net Weight5.6 g

Specifications

Switch Actuation
on end
Contacts Type And Composition
1 C/O standard
Type Of Approach
vertical approach
Electrical Connection
solder tags
Contacts Material
AgNi
Type Of Operator
plunger
Device Short Name
XEP3
Series Namespecial format
Movement Of Operating Headlinear
Range Of ProductOsiSense XC
Contact Operationsnap action
Detector Designminiature, DIN 41635 A format
Product Or Component Typemicroswitch
Head Typeplunger head
