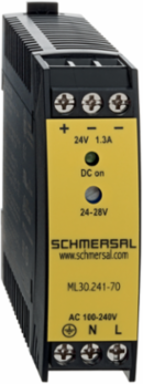

Schmersal 103015923 Power Supply Unit, 100-240 VAC, 75 mm Height, IP20 Rating
- MPN: 103015923
- PPN: SCM-103015923
CAD
$248.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Supply Unit, 100-240 VAC, 75 mm Height, IP20 Rating
Documentation & Downloads
Specifications
Key Specifications
- Width
- 22.5 mm
- Depth
- 91 mm
Height75 mm
Electrical data
- Frequency range
- 50 Hz | 60 Hz
- Rated operating voltage
- 100 ... 240 VAC
- Rated AC voltage for controls, 50 Hz, minimum
- 100 VAC
- Rated AC voltage for controls, 60 Hz, minimum
- 100 VAC
- Rated AC voltage for controls at DC minimum
- 110 VDC
Operating voltage100 ... 240 VAC -15 % / +10 %
Operating current0.3 mA | 0.54 mA
Rated control voltage at AC 50 Hz, maximum240 VAC
Rated control voltage at AC 60 Hz, maximum240 VAC
Rated control voltage at DC, maximum300 VDC
Mechanical data - Dimensions
- Width
- 22.5 mm
- Depth
- 91 mm
Height75 mm
Ambient conditions - Insulation values
- Degree of pollution
- 2
General data - Features
- Integral system diagnostics, status
- Yes
Number of LEDs1
General data
- Standards
- EN 50178 | EN IEC 62061 | IEC 60364-4-41 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | IEC 62103 | EN IEC 60204-1 | EN IEC 60947-1
- Gross weight
- 140 g
Climatic stressIEC 60068-2-30
Ambient conditions
- Degree of protection of the enclosure
- IP20
- Storage and transport temperature, minimum
- -40 °C
- Resistance to vibrations
- 2
Ambient temperature-10 ... +70 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g 6 ms, 20 g 11 ms (IEC 60068-2-27)
Mechanical data - Connection technique
- Termination
- rigid or flexible | Screw terminals M20 x 1.5
- Cable section, maximum
- 6 mm²
Cable section, minimum0.5 mm²
Tightening torque of Clips1 Nm
Mechanical data
- Mounting
- Snaps onto standard DIN rails to IEC 60715
Electrical data - Electromagnetic compatibility (EMC)
- EMC rating
- EMC-Directive
