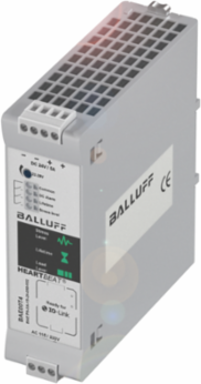

Balluff BAE PS-XA-1S-24-050-102 Heartbeat Power Supply Unit, 24V DC, 120W, 5A, DIN Rail Mounted
- MPN: BAE PS-XA-1S-24-050-102
- PPN: BAL-BAE00T4
CAD
$418.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Heartbeat Power Supply Unit from Balluff is a robust and efficient solution for your power needs, delivering a stable 24V DC output with a capacity of 120W and a rated current of 5A. Designed for DIN rail mounting, this unit boasts an impressive temperature range of -25 to 70 C, making it suitable for a variety of industrial environments. With features such as automatic input voltage selection between 115/230 VAC and a maximum output current of 7.5 A for short durations, this power supply unit ensures reliable performance while adhering to stringent CE and cULus standards. Its durable aluminum housing and IP20 rating further enhance its suitability for demanding applications.
Documentation & Downloads
Specifications
Additional
| Rated Output Voltage | 24 V DC |
|---|---|
| Rated Output Current | 5 A |
| Output Capacity Max. | 120 W |
| Mounting | DIN rail |
| IP Rating | IP20 |
| Connection (Supply Voltage IN) | Terminal strip |
| Dimensions | 38 x 127 x 120 mm |
| Input Voltage | 115/230 VAC automatic selection, Single phase |
|---|---|
| Maximum Output Current | 7.5 A for max. 4s; 1x/min. |
| Ambient Temperature Range | -25 to 70 0C |
| Housing Material | Aluminum |
| Approvals | CE, cURus, cULus, WEEE |
| Connection (Supply Voltage OUT) | Terminal strip |
| Country of Origin | Hungary |
