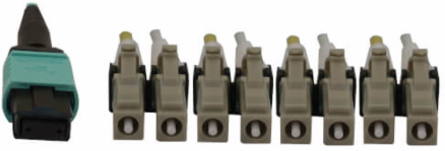

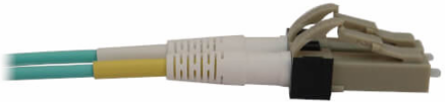

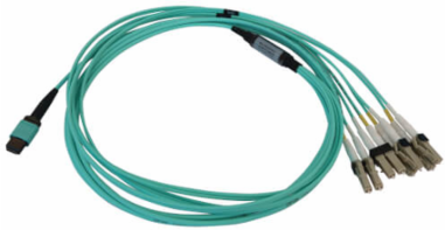

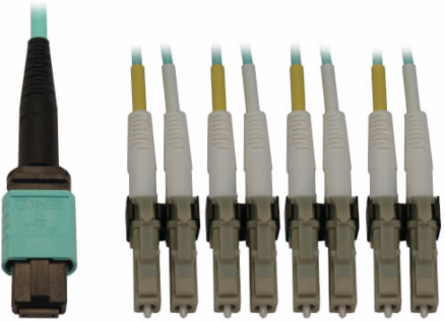

Tripp Lite N844X03M8LP Fiber Optic Cable, MTP/MPO-PC to 4x Duplex LC/PC, 12F Multimode OM3 50/125, LSZH, Aqua, 3 m
- MPN: N844X03M8LP
- UPC: 037332272935
- PPN: TRP-N844X-03M-8L-P
CAD
$329.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 3 m (9.8 ft.)
Documentation & Downloads
Specifications
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5 dB/km
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5 dB/km
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Dimensions
- Cable Length
- 3 m (9.8 ft)
- Side A - Connector 1
- 12F MPO (Female)
- Optical Port
- LC; MPO/MTP
- Polarity
- Type B (cross)
- Cable Outer Diameter
- 3.0 mm
- Core Diameter
- 50.0
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
Number of Fibers8
Side B - Connector 1(4) LC Duplex (Male)
Endface PolishPC
BreakoutYes
Clad Diameter125.0
Primary Coating Diameter245.0
Material
- Technology
- Multimode
- Connector Color
- Beige; Black
- Cable Jacket Rating
- OFNR
Cable Jacket ColorAqua
Cable Jacket MaterialLSZH
Reference
- Product Warranty Period
- Lifetime limited warranty
