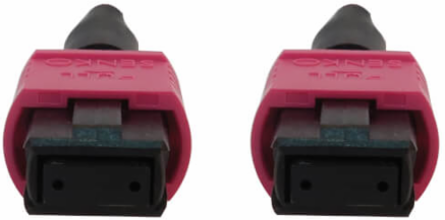

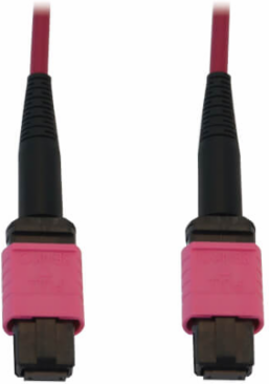

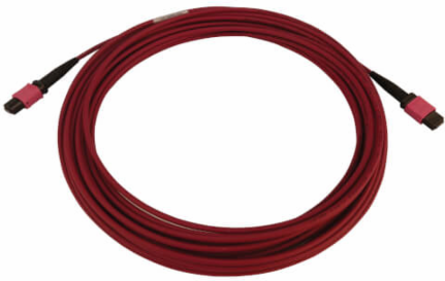

Tripp Lite N845B10M12MG Fiber Optic Cable, 100G Multimode OM4, 12F MTP/MPO-PC F/F, LSZH, Magenta, 10 m
- MPN: N845B10M12MG
- UPC: 037332272270
- PPN: TRP-N845B-10M-12-MG
CAD
$436.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Multimode 50/125 OM4 Fiber Optic Cable (12F MTP/MPO-PC F/F), LSZH, Magenta, 10 m (32.8 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 10 m (32.8 ft)
- Side A - Connector 1
- 12F MPO (Female)
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 245.0
Number of Fibers12
Side B - Connector 112F MPO (Female)
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Material
- Technology
- Fiber; Multimode
- Cable Jacket Color
- Magenta
- Cable Jacket Material
- LSZH
- Push/Pull Tabs
- Yes
Endface PolishPC
Connector ColorMagenta; Black
Cable Jacket RatingOFNR
Reference
- Product Warranty Period
- Lifetime limited warranty
Performance
- Network Compatibility
- 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
- Attenuation @ 850NM
- 3.5 dB/km
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity5% to 85% RH, Non-Condensing
Attenuation @ 1300NM1.5 dB/km
