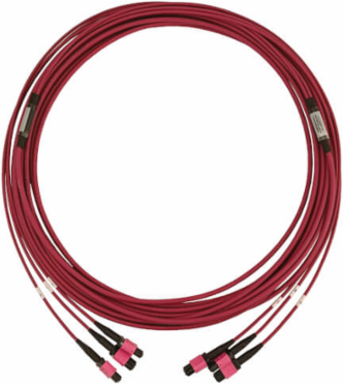

Tripp Lite N858B10M3X8MG Fiber Optic Cable, 40/100/400G Multimode OM4, 3x8F MTP/MPO-PC (F/F), LSZH, Magenta, 10 m
- MPN: N858B10M3X8MG
- UPC: 037332273178
- PPN: TRP-N858B-10M-3X8MG
CAD
$1318.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

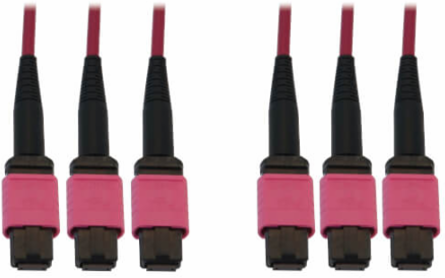

40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (3x8F MTP/MPO-PC F/F), LSZH, Magenta, 10 m (32.8 ft.)
Documentation & Downloads
Specifications
Material
| Technology | Multimode |
|---|---|
| Polarity | Type B (cross) |
| Connector Color | Black; Magenta |
| Cable Jacket Rating | OFNR |
| Endface Polish | PC |
|---|---|
| Cable Jacket Color | Magenta |
| Cable Jacket Material | LSZH |
| Breakout | Yes |
Dimensions
| Side A - Connector 1 | 12F MPO (Female) |
|---|---|
| Optical Port | MPO/MTP |
| Cable Length | 10M (32.8 ft) |
| Cable Outer Diameter | 4.5 mm |
| Core Diameter | 50.0 |
| Side B - Connector 1 | 24F MPO (Female) |
|---|---|
| Number of Fibers | 24 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
Performance
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 850NM | 3.5 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1300nm; 850nm |
|---|---|
| Attenuation @ 1300NM | 1.5 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Compliance
| Product Warranty Period | Lifetime limited warranty |
|---|
